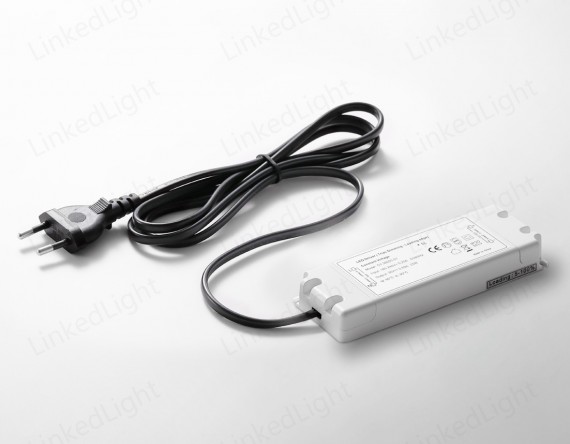

CV.36025.01.EU01 / 36V 25W Constant Voltage Triac Dimmable Driver with Plug

Constant Voltage Triac Dimmable LED Driver is mainly used for LED strips, LED modules, LED panel lamps, cabinet lamps, kitchen lamps and other LED fixtures.

Approvals : CE / SAA / VDE

Technical Operating Data

Dirver Type : 36V 25W Dimmable	Dimming Way : Triac
Input Voltage : 180-240V	Output Voltage : 36V
Rated Power : 25W	Output Current : 0.69A
AC Plug : European 2-Pole Round Plug	Cable Type : 2x0.75mm² Flat Cable
