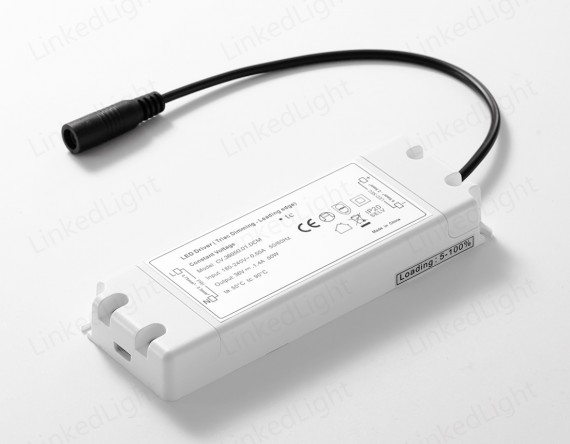

CV.36050.01.DCM / 36V 50W Constant Voltage Triac Dimmable Driver with DC Plug
Constant Voltage Triac Dimmable LED Driver is mainly used for LED strips, LED modules, LED panel lamps, cabinet lamps, kitchen lamps and other LED fixtures.

Approvals : CE / SAA
Technical Operating Data
Dirver Type : 36V 50W Dimmable
Dimming Way : Triac
Input Voltage : 180-240V
Output Voltage : 36V
Rated Power : 50WOutput Current : 1.4A
DC Plug : 5521 Female Plug
Cable Type : 2x0.75mm² Flat Cable
