LED Triac Dimmable Drivers
LED Triac Dimmable Drivers
121 0
Products

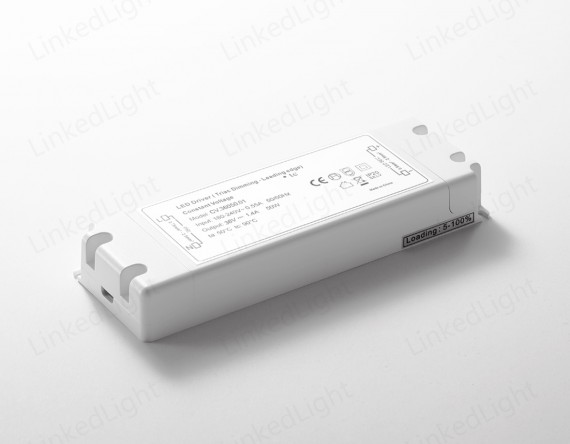

CV.36050.01 / 50W 36V Constant Voltage Triac Dimmable LED Driver
Constant Voltage Triac Dimmable LED Driver is mainly used for LED strips, LED modules, LED panel lamps, cabinet lamps, kitchen lamps and other LED fixtures.
Optional Colour :

White

Approvals : CE / ROHS
Technical Operating Data
Input Voltage : 180-240V
Frequency : 47-63HZ
Cable-Input : Lx1 / Nx1Dimming Way : Triac
Output Voltage : 36VOutput Current : 1.4A
Rated Power : 50WCable-Output : LED+/1, LED-/1
Product Size : 178x61x24mmIP Rating : IP20
Minimum Load : 5%Dimming Range : 0-100%
