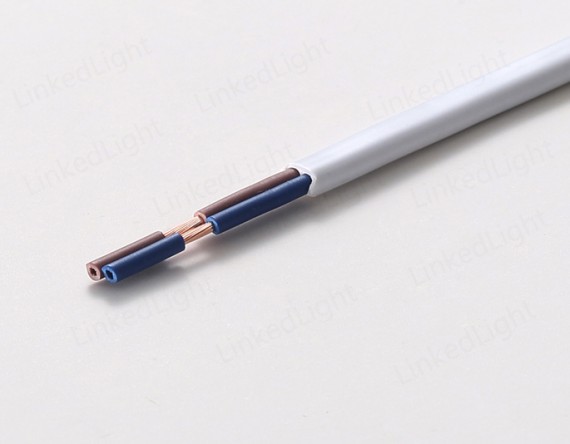

This cable is 2 core flat Low Smoke Zero Halogen Cable, the type is H03Z1Z1H2-F, It is mainly suitable for household appliances, lighting lamps, office equipments, medical equipments and other power connection.
Black
White
VDE
| Cable Type : H03Z1Z1H2-F | Conductor Material : Stranded Bare Copper |
| Insulation Material : Low Smoke Zero Halogen | Jacket Material : Low Smoke Zero Halogen |
| Rated Voltage : 300/300V | Rated Temperature : 70 ℃ |
| Conductor Section : 2x0.5mm² | Construction : 28x0.15Φmm |
| Conductor Section : 2x0.75mm² | Construction : 24x0.20Φmm |
| Insulation Thickness : 0.5mm | Jacket Thickness : 0.6mm |
