Single Conductor Wires
Single Conductor Wires
20 0
Products

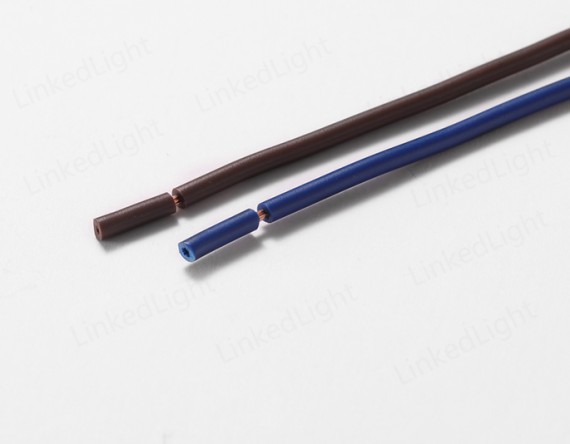

WR.301 / H03VH7-H / European PVC Single Conductor Wire 0.5-0.75-1.0mm²
This wire is European PVC single conductor wire, the type is H03VH7-H, It is mainly used for internal wiring of lighting fixtures, electronic and electrical equipment.
Optional Colour :

Blue

Brown

Approvals : VDE
Technical Operating Data
Cable Type : H03VH7-HConductor Material : Stranded Bare Copper
Insulation Material : PVC
Insulation Thickness : 0.50mm
Rated Voltage : 300/300V
Rated Temperature : 70 ℃


Conductor Section : 1x0.5mm²Construction : 16x0.20Φmm
Conductor Section : 1x0.75mm²
Construction : 24x0.20Φmm
Conductor Section : 1x1.0mm²
Construction : 32x0.20Φmm
  • Related Products
  • Variants
  • Accessories
  • Optional Accessories
European PVC Single Conductor Wire 0.5-0.75-1.0mm²
WR.311 / H05V-K

European PVC Single Conductor Wire 0.5-0.75-1.0mm²

Tin Plated Inner Wire
EP.004

Tin Plated Inner Wire

With Brass Ferrules
EP.006

With Brass Ferrules

With Double Rings
EP.007

With Double Rings
