Plastic Lampholders
Plastic Lampholders
59
European E27 Series

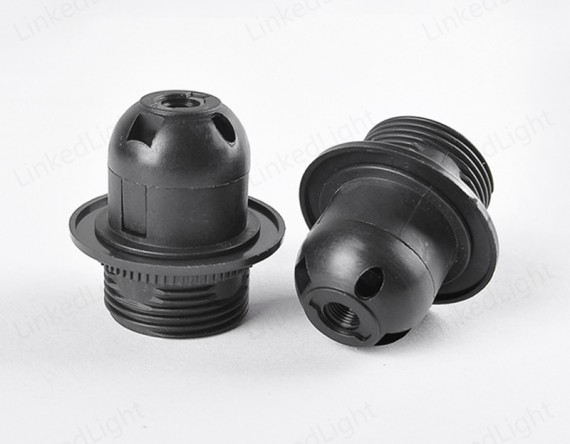

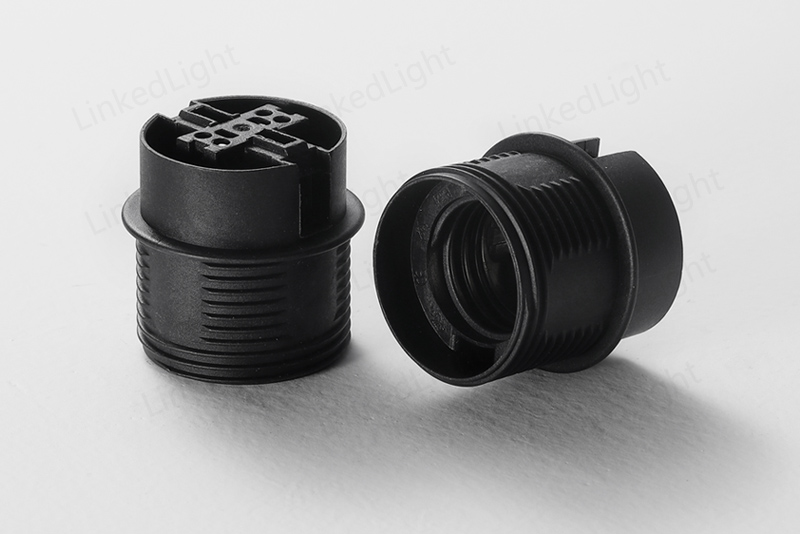

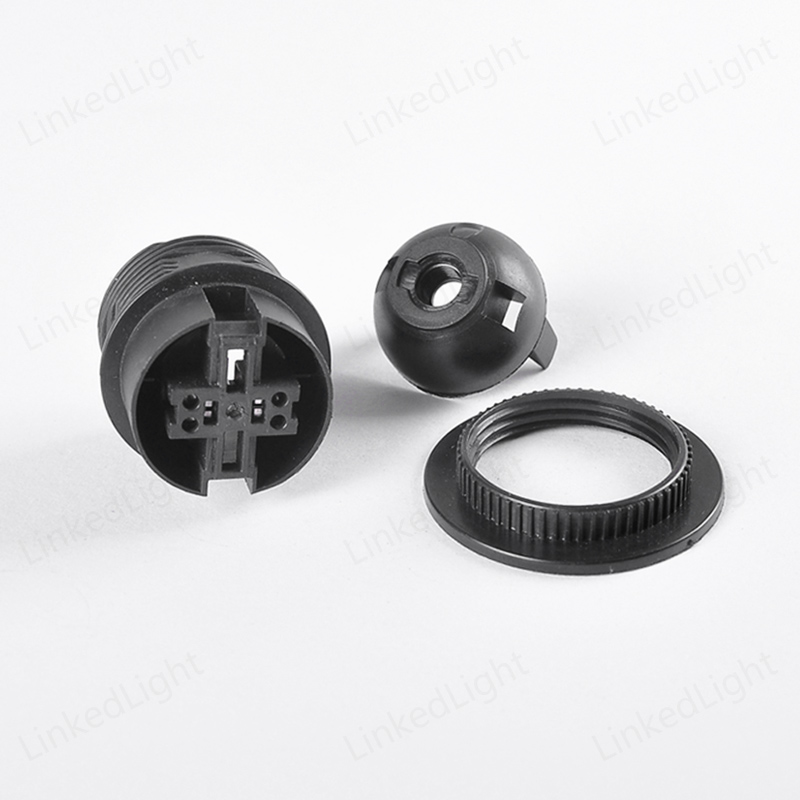

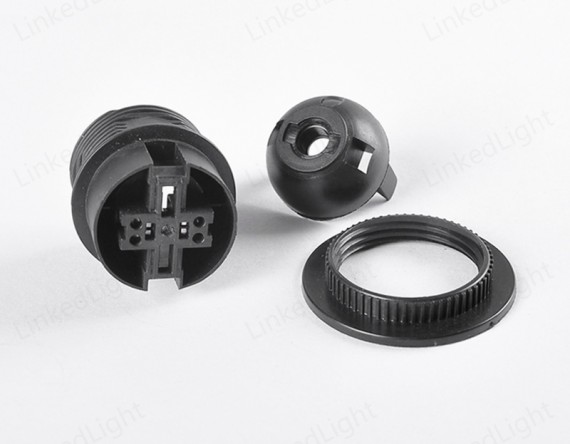

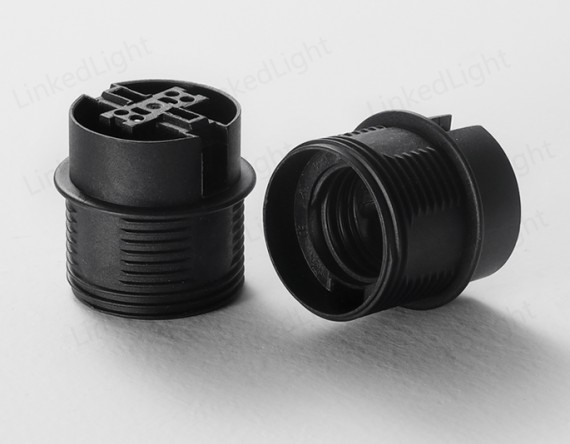

E27.104S / E27 Plastic Lamp Base

E27 Plastic Lamp Base is also called E27 Plastic Bulb Socket, It belongs to Edison Screw Type lamp holder series. It is mainly used for easy pendant lamps, decorative lamps, LED Floor lamps, and other LED lamps.

Optional Colour :

Black

White



Approvals :

CE / ENEC / VDE

Technical Operating Data
Housing Material : Thermoplastic PETContact Material : Copper
Out Shell : Half ThreadRated Temperature : T180- T210°C
Rated Voltage : 250V
Rated Current : 4A


Cable Type : 0.5-1.5mm² rigid or flexible cables
Cable Finish : 7-10mm
Terminals : Push In type
Installs Way : Bayonet
