Screw Terminal Block
Screw Terminal Block
216
Terminal Blocks

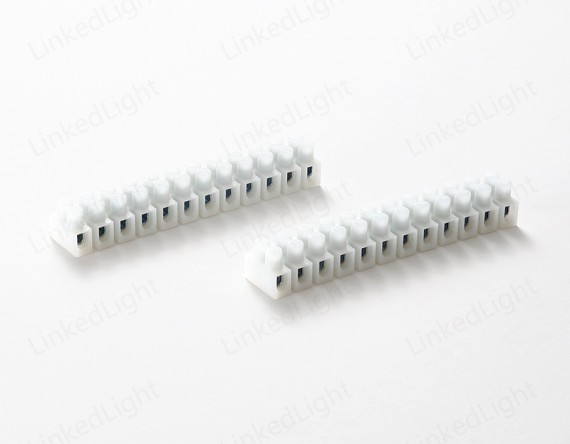

TB.PA7.12 / 12 Pole Terminal Block
The terminal block is mainly used for all kinds of electrical products, lighting products, and construction and hydropower engineering wiring equipment.
Optional Colour :

White

Approvals : VDE
Technical Operating Data
Rated Voltage : 450VRated Current : 17.5A
Cable Capacity : 0.75-1.5mm²Stripping Length : 5mm
Fixing Way：M2.6 Screw
Connection Pole : 12

Insulation Material : PA6Conductor Material : Copper
Screw Type : M2.6x5Screw Material : Steel,Zinc Plated
Work Temperature : T110 °C
Rating Flammability : 94V2
Product Size : L17xW96.3xH14.5mm
Raised Base : 1.0mm
