LED Triac Dimmable Drivers
LED Triac Dimmable Drivers
121 0
Products

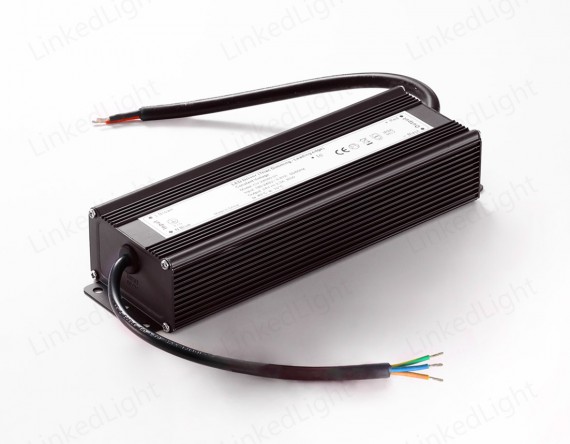

CV.24080.01 / 80W 24V Constant Voltage Triac Dimmable LED Driver
Constant Voltage Triac Dimmable LED Driver is mainly used for LED strips, LED modules, LED panel lamps, cabinet lamps, kitchen lamps and other LED fixtures.
Optional Colour :

Black

Approvals : CE / ROHS
Technical Operating Data
Input Voltage : 180-240V
Frequency : 47-63HZ
Cable-Input : H05RN-F 3x1.0mm² (Red+/Black-)Dimming Way : Triac
Output Voltage : 24VOutput Current : 3.3A
Rated Power : 80WCable-Output : H05RN-F 2x1.0mm² (Red+/Black-)
Product Size : 230x70x43mmIP Rating : IP66
Minimum Load : 5%Dimming Range : 0-100%
  • Related Products
  • Variants
  • Accessories
  • Optional Accessories
50W 24V Constant Voltage Triac Dimmable LED Driver
CV.24050.01

50W 24V Constant Voltage Triac Dimmable LED Driver

100W 24V Constant Voltage Triac Dimmable LED Driver
CV.24100.01

100W 24V Constant Voltage Triac Dimmable LED Driver

120W 24V Constant Voltage Triac Dimmable LED Driver
CV.24120.01

120W 24V Constant Voltage Triac Dimmable LED Driver

150W 24V Constant Voltage Triac Dimmable LED Driver
CV.24150.01

150W 24V Constant Voltage Triac Dimmable LED Driver

80W 12V Constant Voltage Triac Dimmable LED Driver
CV.12080.01

80W 12V Constant Voltage Triac Dimmable LED Driver
