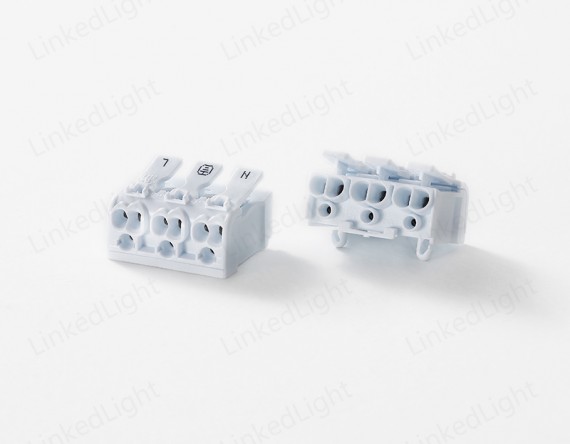

SL.C2023 / SL.C2023H / 3 Pole Screwless Push Wire Cable Connector
Screwless Push Wire Cable Connectors is mainly used in various electrical appliances, lighting, power and other industries for quick wire connection.
Approvals : CE / CQC / VDE / CUL
Technical Operating Data
| Rated Voltage : IEC/EN 450V | UL 300V | Rated Current : IEC/EN 24A | UL 16A |
| Housing Material : PC / PA ( 94V-2) | Insert Material : Brass |
Work Temperature : IEC/EN T110℃ | UL105℃
| Connection Points : 3 x 2 |
Cable Capacity : IEC/EN 0.5-2.5mm² | UL AWG14-20
| Strip Length : 8-10mm
|
| Terminals : Multiway | Wiring Means : Push In
|
